F07 LiDARA flash LiDAR (solid-state type) that emits light in the near-infrared (NIR)
wavelength range and calculates the time or phase difference between
the emitted and reflected light to measure distance. This technology is
applicable in autonomous vehicles, AMR/AGV systems, robotics,
and security products.
ApplicationsAGVs, AMRs, delivery robots, and more
Features
01Solid-state LiDAR
02High durability/reliability
03Suitable for all indoor/outdoor environments
Specification
TOF Type
Wavelength
Resolution(Pixel)
FOV(Field Of View)
Continuous Wave (iTOF)
940nm
160(H) x 60(V)
98°(H) x 36°(V)
50°(H) x 19°(V)
Size(L x H x D)
Supply Voltage
Data Interface
Detection Range
75 × 33.2 × 27.6mm
5V(Via USB)
USB
4m
7m
LiDAR & Robotics
3D Flash LiDAR
F25 LiDAR A flash LiDAR (solid-state type) that emits light in the near-infrared (NIR)
wavelength range and calculates the time or phase difference between
the emitted and reflected light to measure distance. This technology is
applicable in autonomous vehicles, AMR/AGV systems, robotics,
and security products.
ApplicationsDelivery robots, agricultural autonomous mobile robots, indoor/outdoor control systems, etc.
Features
01Solid-state LiDAR
02High durability/reliability
03Suitable for all indoor/outdoor environments
Specification
TOF Type
Wavelength
Resolution(Pixel)
FOV(Field Of View)
Continuous Wave (iTOF)
940nm
320(H) x 240(V)
110°(H) x 82°(V)
70°(H) x 52°(V)
Size(L x H x D)
Supply Voltage
Data Interface
Detection Range
107 × 57.8 × 53mm
12 ~ 24VDC
Ethernet
12m
23m
LiDAR & Robotics
3D Flash LiDAR
F12 LiDARA flash LiDAR (solid-state type) that emits light in the near-infrared (NIR)
wavelength range and calculates the time or phase difference between
the emitted and reflected light to measure distance. This technology is
applicable in autonomous vehicles, AMR/AGV systems, robotics,
and security products.
ApplicationsAMRs, delivery robots, logistics robots, overhead conveyors, etc.
Features
01Solid-state LiDAR
02High durability/reliability
03Suitable for all indoor/outdoor environments
Specification
TOF Type
Wavelength
Resolution(Pixel)
FOV(Field Of View)
Continuous Wave (iTOF)
940nm
320(H) x 240(V)
110°(H) x 82°(V)
70°(H) x 52°(V)
Size(L x H x D)
Supply Voltage
Data Interface
Detection Range
86 × 40 × 56mm
12 ~ 24VDC
Ethernet
8m
12m
LiDAR & Robotics
3D Flash LiDAR
F70 LiDARA flash LiDAR (solid-state type) that emits light in the near-infrared (NIR)
wavelength range and calculates the time or phase difference between
the emitted and reflected light to measure distance. This technology is
applicable in autonomous vehicles, AMR/AGV systems, robotics,
and security products.
ApplicationsAutonomous driving, smart cities, intrusion detection in facilities, patrol robots for large yards, etc.
Features
01Solid-state LiDAR
02High durability/reliability
03Suitable for all indoor/outdoor environments
Specification
TOF Type
Wavelength
Resolution(Pixel)
FOV(Field Of View)
Pulse (dTOF)
940nm
192(H) x 56(V)
90°(H) x 30°(V)
20°(H) x 11°(V)
Size(L x H x D)
Supply Voltage
Data Interface
Detection Range
107 × 57.8 × 53mm
12 ~ 24VDC
Ethernet
80m
150m
LiDAR & Robotics

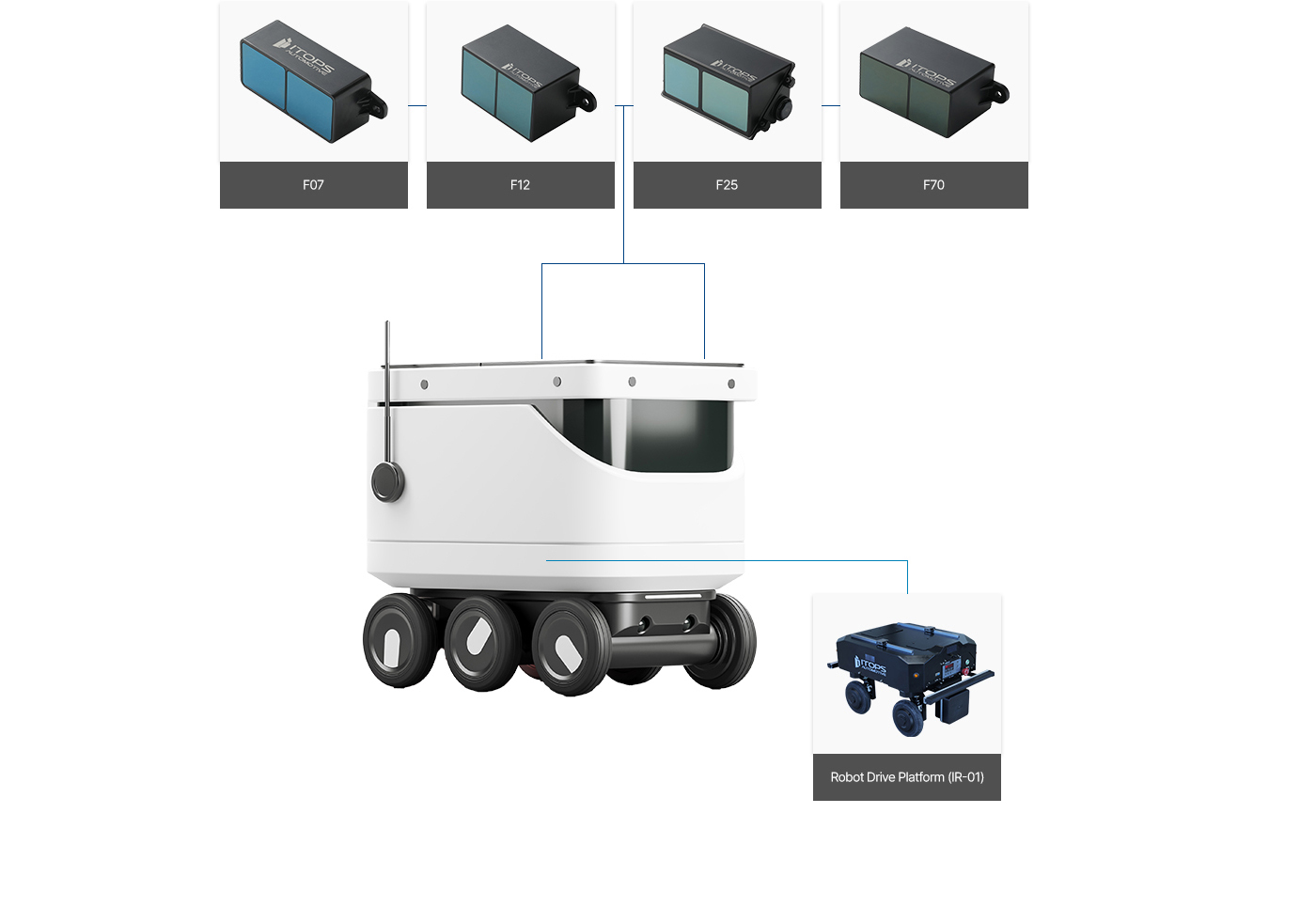

Robot Drive Platform
Robot Drive Platform(IR-01)A core drive platform for mobile robots, integrating wheels, steering, battery, wireless charging, drive controller, and LiDAR.
ApplicationsAutonomous driving applications such as logistics, delivery, guidance,
patrol, and military; and manufacturing applications such as unmanned,
automated manufacturing, etc.
Features
01All-Wheel Drive & All-Wheel Steering
Drive control in multiple modes
0220km driving range with up to 50kg payload
03Built-in flash LiDAR (front, rear, left and right)
